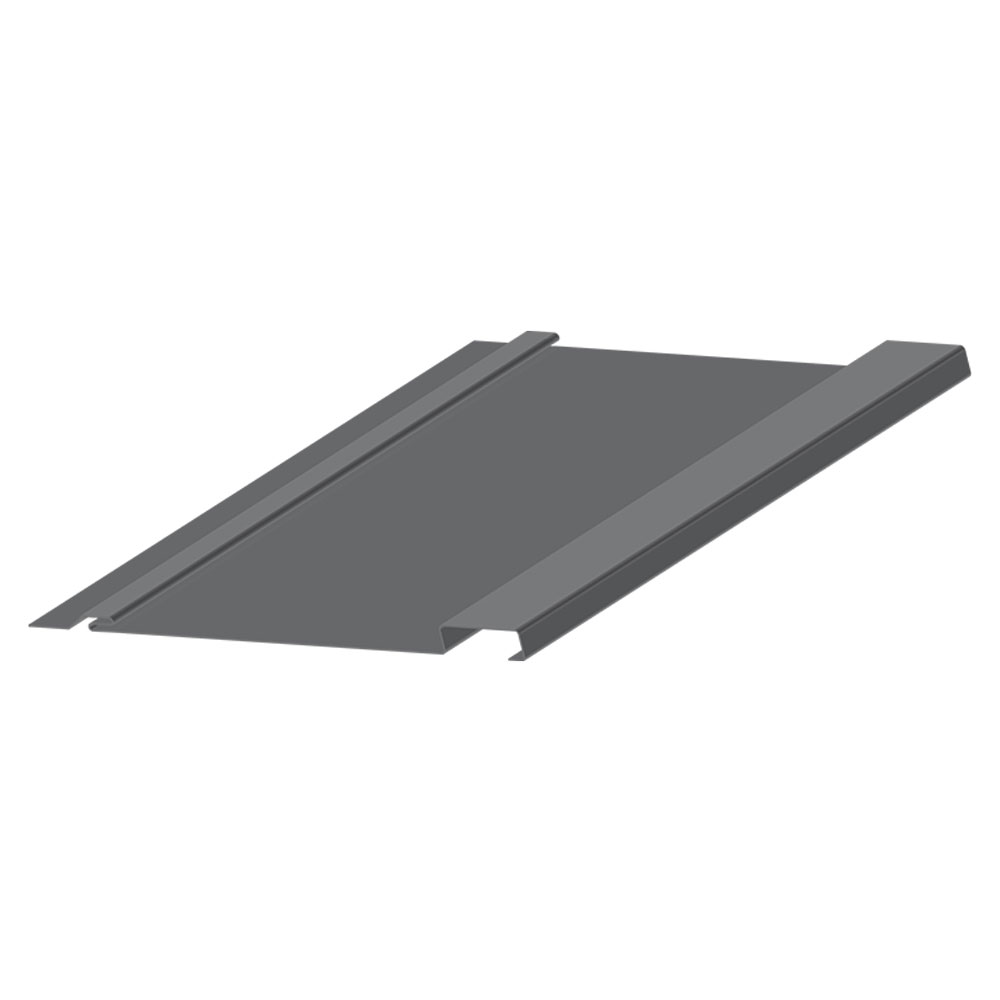

Board & Batten Panels
Our Board & Batten panel is not only a stylish choice but a cost-effective choice. This type of panel is fade resistant and low maintenance. CMS Board and Batten exterior siding can last for many years-even decades- if properly maintained. It has minimal exposed fasteners. Weather is never an issue with this type of panel. Board and Batten siding can be installed vertically for a one-of-a-kind appearance. Even better, our board and batten siding is available in a variety of colors to match your desired aesthetic.
PRODUCT DATA INFORMATION

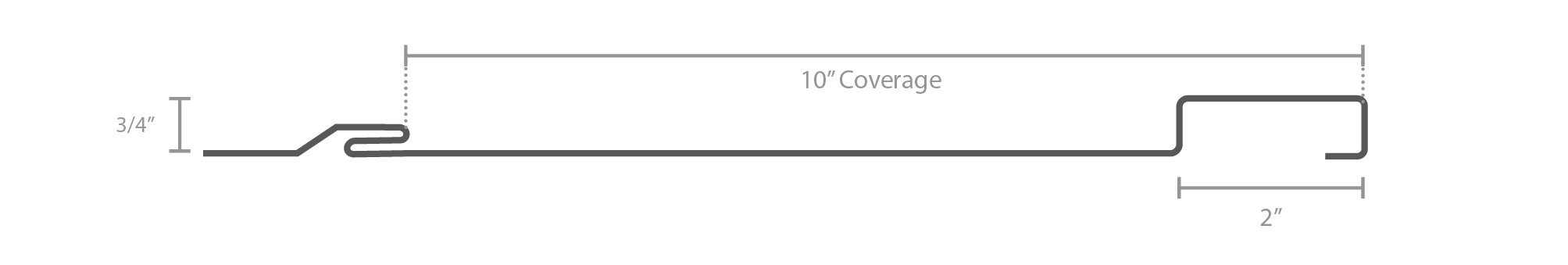

Board & Batten Panel Specifications
Product Data
Applications: Walls & Ceilings
Coverage Width: 10” to 16”
Minimum Slope: 3:12
Panel Attachment: Concealed Fastener System
Rib Height: 0.75”
Rib Spacing: 9” on center
Length: Custom cut-to-length
Gauges: 26ga — .0185
Coatings:
Weather XL 40-Year Paint Finish
Weather XL Crinkle 40-Year Paint Finish
Available Substrates:
AZ50 Galvalume
Available Colors
Colors are approximate and will vary from the computerized generation you are viewing. Please consult a product representative in your area for a color chart of sample before ordering.
