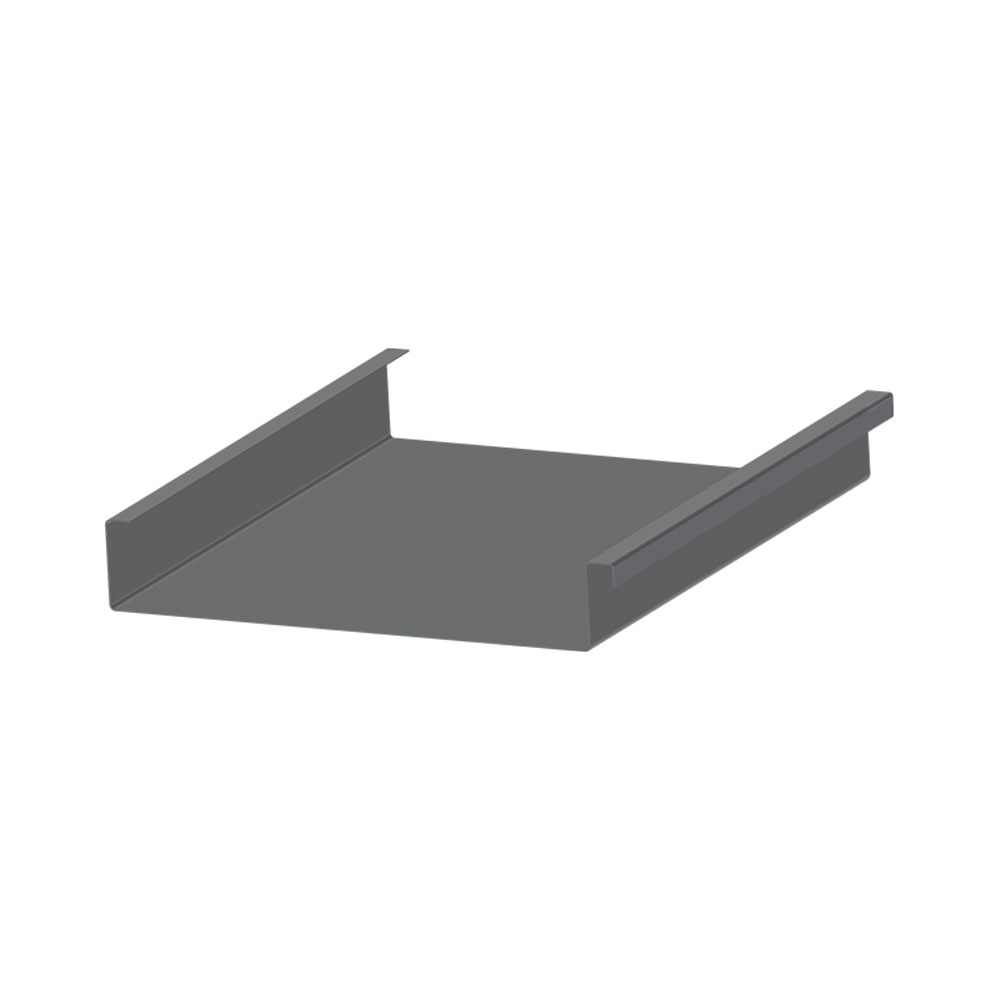

SS200 Standing Seam Panels
The SS200 Standing Seam Panel combines a mechanical seam overlap with a concealed fastener clip system to deliver a roof and wall cladding solution built for demanding applications. The mechanically seamed joint creates a weather-tight interlock that stands up to high-wind uplift, thermal expansion, and heavy precipitation — providing long-term performance with minimal maintenance. Hidden fasteners eliminate exposed penetrations entirely, preserving the panel’s clean, continuous aesthetic while protecting structural integrity over the life of the installation. The clip system accommodates thermal movement naturally, reducing stress on the panel and the structure beneath it.
PRODUCT DATA INFORMATION
SS200 Standing Seam Panels
Product Data
Applications: Roof

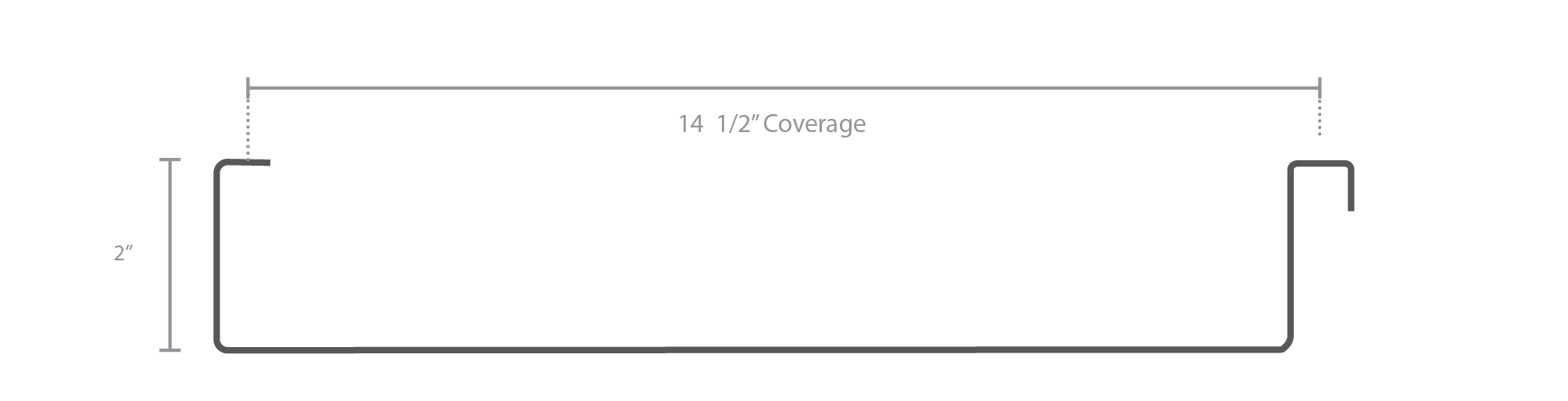

Coverage Width: 14.5”
Minimum Slope: 1:12
Panel Attachment:
Mechanical seam overlap with fastener clip system
Hidden fasteners
Butyl tape required for seam sealing
Rib Height: 2”
Gauges:
26ga — .0185 panel thickness
24ga — .0239 panel thickness
Coatings:
Weather XL 40-Year Paint Finish
Weather XL Crinkle 40-Year Paint Finish
Available Substrates:
AZ50 Galvalume
Available Colors
Colors are approximate and will vary from the computerized generation you are viewing. Please consult a product representative in your area for a color chart of sample before ordering.
