Metal Roof Panel Accessories

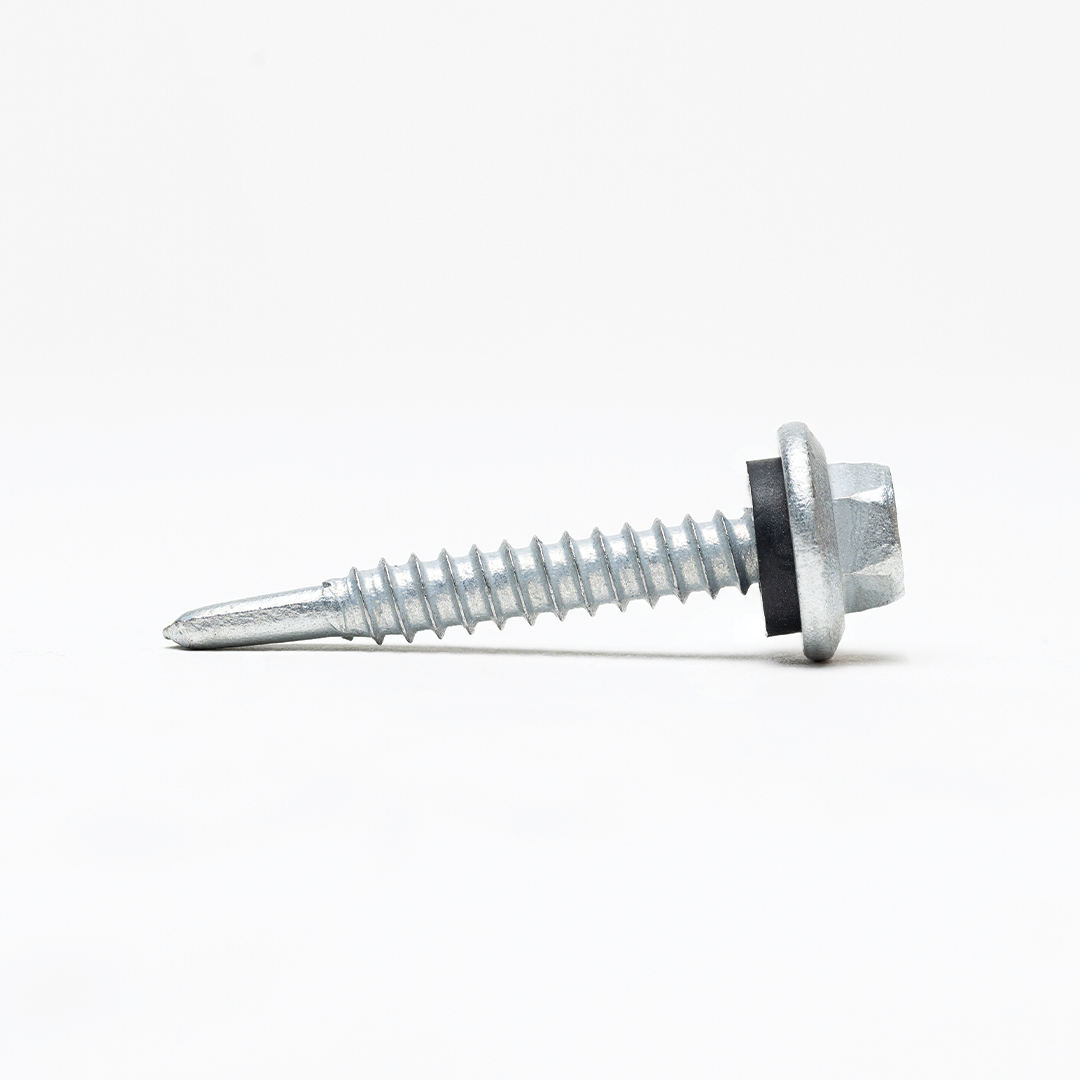

• Flat-Top fasteners combine under-cut hex washer heads with EPDM cut-tubular sealing washers. They are a superior and cost-effective alternative to standard fasteners with metal back washers.
• One-piece design eliminates damage to painted washer surface and eliminates dissimilar metal washer materials.
• Flat on top stabilizes socket during installation
• Higher hex provides positive socket engagement
• Special undercut entraps sealing washer, even when driven at extreme angles
• Assembled with an EPDM Cut Tubular Washer

1 1/4" Fastener

Point Stitch 7/8 in

This versatile, trimmable, end-lap sealing tape joins metal to metal, and seals around windows, doors, roof vents, stacks, access doors, and other penetration points. Non-staining and permanently flexible, Mastix stays in place with no melting or oozing, even in extreme heat.

PRODUCT SPECIFICATIONS

• Trimmable joint and end lap sealing tape
• Non-staining, permanently flexible
• Seals around windows, doors, roof vents, and more
• Roll won’t telescope from heat before installation
• Keeps even hot metal roofing panels in place, no melting or oozing
• Made in the USA
• Economical
• 40-year limited warranty
• Flexible metal-to-metal adhesive that stays in place, even in extreme heat
• Available in 3/8″, 1/2″, 1″, and 2″

Specs:

• Color: Off-white to gray
• Size: 3/32” x 3/8” x 45’
• Flammability: 0-Minimal
• Reactivity Hazard: 0-Minimal
• Evaporation Rate: Not applicable
• Appearance: Soft, pliable gum
• Odor: None
• Solubility in Water: Insoluble
• Chemical Name: Isobutylene

VIEW PDF

Emseal expands from 1/4” to 1” , allowing it to fill any shaped gap in the construction of metal buildings, doors and windows, concrete, wood, and more. It is adaptable to most roof panels, including hips and valleys. Highly resistant to bugs and vermin, Emseal maintains its seal in heat and cold and will not leach out or stain.

PRODUCT SPECIFICATIONS

• Expands from 1/4” to 1”
• Follows, flexes, expands, compresses to fit
• UV stable
• Universally adaptable to most roof panels, including hips and valleys
• Highly resistant to bugs and vermin
• Maintains seal in heat and cold
• Will not leech out or stain
• Economical
• 40-year limited warranty
• Automatically expands to fill any shaped gap in the construction of metal buildings, doors and windows, concrete, wood, and more

Specs:

• Color: Base foam is black, other colors available
• Density: 10 lbs./cu ft. (150kg/m3)
• Flammability: UL 94 HF1, self-extinguishing, DIN 4102, B1 compression at 50%, B2 compressed
• Temperature Stability Range: -25°F to 212°F
• Manufacturer’s Lab: -40°C to 120°C
• Weather Resistance: Excellent
• Compression Set: Maximum 2%
• Tensile Strength: 21.8 psi
• Thermal Conductivity: 12, 106 BTU (hr.) (ft2) (*F/ft)

VIEW PDF

The proven choice with a 20-year warranty. Easy, on-site customization for superior fit. Sleeve flexibility absorbs vibration and pipe movement causes by expansion/contraction. Maximum resistance to ozone weathering.

PRODUCT SPECIFICATIONS

• Ozone Resistance: 70 hrs @ 500pphm (EPDM and RS)*
• High Temp Resistance: Intermittent: +135°C/+275°F (EPDM), +260°C/+500°F (RS)  Continuous: +100°C/+212°F (EPDM), +225°C/+437°F (RS)
• Low Temp Resistance: -55°/-67°F (EPDM), -74°C/-101°F (RS)
• Compression Set: 25% (EPDM), 50% (RS)

            *RS = Red Silicon

Types of Roof Boots:

• Black low temp roof boot
• Retrofit roof boot
• Grey low temp roof boot
• High temp roof boot

VIEW PDF

Our premier custom-cut vent strip includes Python™ polyester vent material inserts for a snug fit and optimum ventilation at a cost lower than traditional fans and louvers. Made with recycled materials, it features a 40-year limited warranty and our proprietary adhesive for a superior hold. Our patented LP2 offers superior net-free ventilation that reduces condensation and helps lower utility costs. This durable, modified polyester is a non-woven, non-wicking, fiber-based matting. Its specially cut contours provide a custom, low-profile fit for any pitch and most major metal roof profiles. LP2 provides a superior net-free ventilation area that helps keep out moisture, pests, and dust. Plus, LP2 can be installed by just one person in two easy steps. In fact, the screw bed and industrial strength peel-and-stick adhesive pre-applied to LP2 makes this one of the easiest installations imaginable.

PRODUCT SPECIFICATIONS

• Lower, custom-fit profile
• Custom-cut profiles for snug fit
• Helps reduce utility costs
• Moisture and pest barrier
• Non-obstructive appearance
• Reduced utility costs
• Easy installation
• M63 Marco proprietary adhesive, superior hold
• Superior net-free ventilation reduced condensation
• Marco’s patented Weather-Tite™ LP2™ Ridge Vent is made from non-fabric-covered Python™ vent material

Specs:

• Net-Free Area: Varies with profile based on 17 sq. in. per linear ft. of ventilation material
• Dimensions: Varies with profile
• Air Permeability: >760 cubic feet per minute
• Cold Cracking: -25°F
• Tear Strength: Machine 25 ppi/counter 25 ppi
• Compressive Strength: 1.8 psi at 75%
• Rain: No leakage

VIEW PDF

Smart Vent will conform to virtually any roof panel configuration. It compresses and fills every void between your ridge cap and the roof panel. Factory applied glue strips allow the installer to roll out Smart-Vent. Applied to ridge cap on the ground with a dual strip 1/4" in from each edge, then installed onto the ridge.

• Material is 2" wide with standard thickness of 1"
• Stock one product to match any roof panel configuration
• Use any manufacturers ridge cap
• Use on any roof pitch from 2/12 to 20/12

Physical Properties:

• Standard 1" by 2" by 10' (10/box)
• Stock one product to match any roof panel configuration
•  Apply directly to ridge cap
• UV Stabilized/Fire Retardant
• Continuous Double Glue Strip

10' long low profile ventilator

1/2" Galvanized Mesh

All Exposed Edges Hemmed

Rain Diverter (Metal)

Continuous Drainage Space

2" Nailing Flange

Ideal for large attic or entire building ventilation such as horse, cattle or poultry buildings

3 1⁄2" unrestricted throat with 36 sq. inches of free area per lineal foot

13 1⁄4" overall coverage, with wider flanges available

Rises only 4 1⁄2"above the ridge, all metal edges are hemmed for strength and easier handling

Use in conjunction with an equal area of vented soffit material or louvers for maximum air flow (36 sq in per lineal foot, 2.5 sq ft per vent)

Individually packaged with flashing included, same flashing used for individual or continuous runs

We supply vented and solid soffit. Like many parts of a home’s exterior, soffit serves both an aesthetic and a functional purpose. Functionally, the basic mission of soffit is to protect rafters from the elements. Keeping moisture away from the rafters reduces the chance of mold, and helps preserve the life of the materials.

PRODUCT SPECIFICATIONS

• 16-inch wide
• Special cut lengths are available (Sizes range from 7” to 144”)
• Colored matched painted aluminum
• MWI Components is the industry’s leading manufacturer of soffit

VIEW PDF

PVC Panels are ideal as a wall or ceiling liner panel in any type of confinement building (Hog, Dairy, Poultry). PCV chemical resistance allows for regular cleaning and sanitary maintenance, as well as extended service in harsh chemical environments. Panels are easy to install and maintain using standard tools, while still preserving their glossy appearance over longer periods of time.

Product Characteristics

• Lightweight and Easy to Handle
• Corrosion Free
• Low Coefficient of expansion
• Tough & Durable
• Excellent Fire Performance
• Three Standard Sheet Sizes
• Three Standard Trim Profiles Available
• Easily Cut on The Job Site

• Panel Sizes: Widths:36” Available  Lengths: 12’2”, 16’4”, 20’4”
• Thickness: .039”
• Available Color: Bright white

VIEW PDF

Main Benefits

• Excellent Light Transmission
• Provides Free Natural Light Energy
• More Productive Livestock
• Reduces Running Costs of Building
• Damage & Impact Resistant
• 200 Times Stronger Than Glass
• High Optical Clarity
• Performs Well in Extreme Temps
• Chemical Resistant
• Lightweight, Easily Handled & Installed

Important Info

• Excellent Fire Performance
• Long-Lasting UV PRotection
• 10-Year Light Trasmission
• 3-Year Weather Breakage Warranty

Uses:

• Barns, Farm Buildings, Cattle Sheds
• Chicken Houses, Hog Barns

VIEW PDF
